What Is CSP? Why Proper Concrete Surface Preparation Is the Key to a Long-Lasting Torginol Resinous Garage Floor

When homeowners see a beautiful resinous garage floor with Torginol decorative flakes and a glossy topcoat, they usually notice the finish—not what is underneath it.

But here's the truth:



The quality of a Torginol resinous floor is determined long before the first coat of epoxy, polyurea, or polyaspartic is ever applied.



The secret is proper concrete surface preparation.

One of the most important terms you'll hear in the resinous flooring industry is CSP, or Concrete Surface Profile. Understanding what CSP means can be the difference between a garage floor that lasts for decades and one that begins peeling after only a few months.



At Paint Life Supply Co., we believe education is just as important as using quality products. Let's break down what CSP is, why it matters, and what profile is recommended for residential garage floor coating systems.

---

What Is CSP?

CSP stands for Concrete Surface Profile.

It is the industry standard used to describe the roughness or texture of a prepared concrete surface before a coating is installed.

Think of it like sanding wood before staining or painting.

If the wood is too smooth, the finish won't bond properly.



Concrete works exactly the same way.

A resinous floor coating needs thousands of microscopic peaks and valleys to mechanically lock onto the concrete. Without that profile, even the highest-quality coating can fail.



The International Concrete Repair Institute (ICRI) developed the CSP scale, which ranges from:

• CSP 1 = Nearly Smooth

• CSP 10 = Extremely Aggressive



Most residential garage floor systems fall somewhere between CSP 2 and CSP 3, depending on the coating manufacturer and system being installed.

---

Why CSP Matters

Many coating failures aren't caused by poor products.

They're caused by poor preparation.

When concrete isn't properly profiled, coatings cannot create a strong mechanical bond with the slab.

The result can include:

• Peeling

• Delamination

• Hot tire pickup

• Bubbling

• Premature wear

• Moisture-related failures

No premium epoxy or polyaspartic can compensate for inadequate surface preparation.

That's why professional installers spend so much time preparing the concrete before opening a bucket of coating.

---

Understanding CSP Levels

Here's a simple guide to the most common Concrete Surface Profiles.

CSP 1 – Sealers

Surface: Very light profile

Typical preparation methods include:

• Detergent cleaning

• Acid etching

• Pressure washing

• Diamond grinding with 60–80 grit



Recommended for:

• Penetrating sealers

• Thin concrete sealers

• Coatings up to approximately 3 mils



This profile is generally too smooth for most decorative garage floor coating systems.

---

CSP 2 – Thin Film Coatings

Typical preparation:

• Diamond grinding with 25–40 grit diamonds



Recommended for:

• Thin-film coatings

• Coatings approximately 4–12 mils thick



This provides a slightly rougher surface while maintaining a relatively smooth finish.

---

CSP 3 – High-Build Coatings

Typical preparation:

• Coarse diamond grinding (6–16 grit)

• Light shot blasting



Recommended for:

• High-build epoxy systems

• Decorative flake systems

• Many residential garage floor installations

• Coatings approximately 16–40 mils



For most premium garage floor systems, CSP 3 is often considered the sweet spot, providing excellent mechanical adhesion without creating unnecessary texture.

---

CSP 4 – Broadcast & Slurry Systems

Typical preparation:

• Shot blasting



Recommended for:

• Broadcast systems

• Slurry applications

• Heavy-duty commercial flooring

• Systems approximately 60–125 mils thick



These profiles are more common in commercial, industrial, and manufacturing environments.

---

CSP 5 – Heavy Overlay Systems

Typical preparation:

• Aggressive shot blasting

• Scarifying



Recommended for:

• Thick overlay systems

• Heavy industrial coatings

• 125–250 mil systems



This profile creates a deeply textured surface capable of supporting very thick coating systems.

---

What Is the Best CSP for Residential Garage Floors?

For most decorative residential garage floor systems consisting of:

• Epoxy primer

• Build coat

• Full flake broadcast (Flaking To Rejection)

• Polyaspartic, polyurea, or polyurethane topcoat



the ideal preparation is typically CSP 2 to CSP 3, depending on the coating manufacturer's specifications.

A properly prepared CSP 2–3 profile provides:

• Outstanding adhesion

• Long-term durability

• Better resistance to hot tire pickup

• Improved impact resistance

• Longer coating life



Always follow the coating manufacturer's technical data sheet, as required surface profiles can vary by system.

---

Grinding vs. Acid Etching

One of the biggest misconceptions among DIY installers is that acid etching can replace mechanical grinding.



While acid etching may be acceptable for certain thin sealers or specialty applications, professional installers overwhelmingly rely on mechanical diamond grinding or shot blasting because these methods:

• Remove surface contaminants

• Eliminate weak laitance

• Open the concrete pores

• Produce a consistent, measurable surface profile

• Create a stronger mechanical bond



Mechanical preparation also allows installers to inspect the slab for cracks, repairs, moisture issues, and previous coatings before the installation begins.

---

Surface Prep Is More Than Just Grinding

Achieving the correct CSP is only one part of preparing a garage floor.

Professional installers also inspect for:

• Oil contamination

• Tire residue

• Previous sealers

• Existing coatings

• Moisture issues

• Concrete repairs

• Cracks and control joints

• Surface dust and debris



Every one of these factors affects the long-term success of the coating system.

---

Safety During Surface Preparation

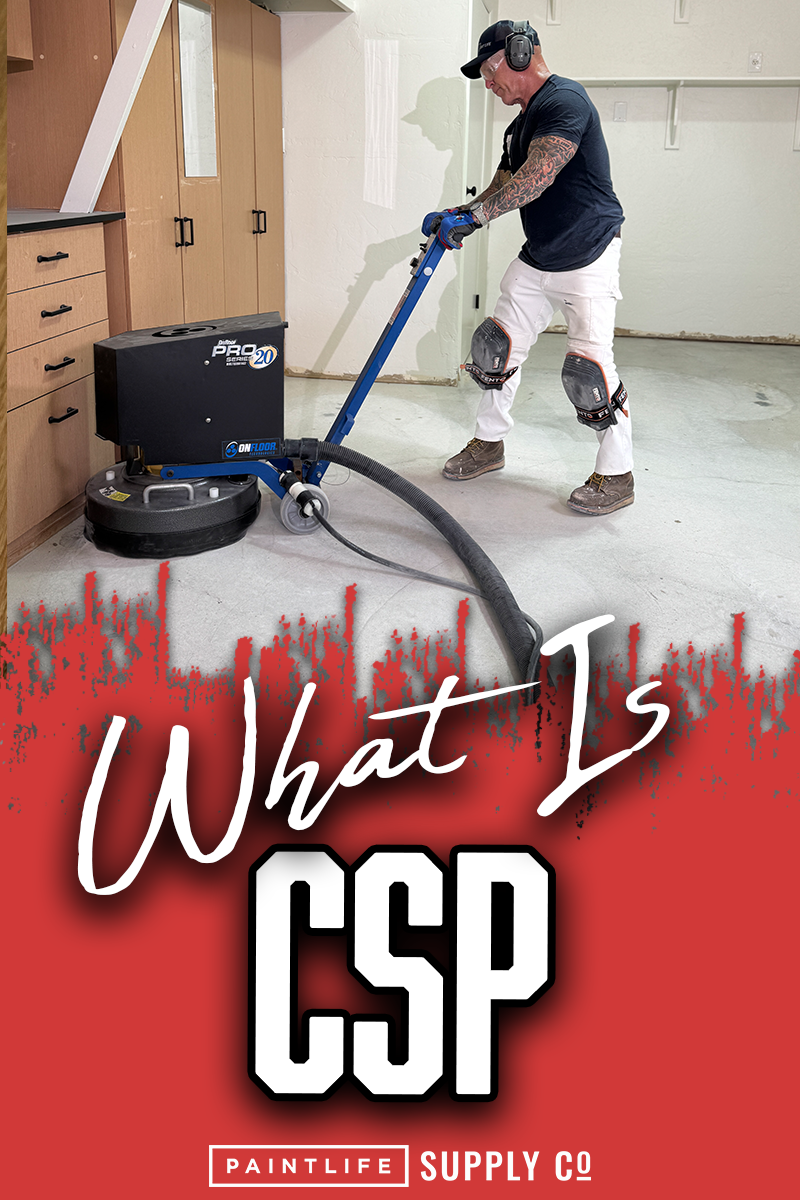

Concrete preparation generates significant dust and debris when performed mechanically.

Professional installers should always use:

• OSHA-compliant dust extraction systems

• Proper respirators

• Eye protection

• Hearing protection

• Appropriate PPE



A clean work environment is safer for installers and results in a better coating installation.

---

The Foundation of Every Great Garage Floor

Beautiful resinous floors don't happen by accident.



They're built on proper preparation.



Understanding Concrete Surface Profile (CSP) helps explain why professional installers place so much emphasis on grinding, cleaning, repairing, and preparing the slab before any coating is applied.



When the concrete is properly prepared, every layer of the flooring system performs better—from the primer all the way to the final clear topcoat.



At Paint Life Supply Co., we're committed to helping painters and coating installers achieve professional results by providing the tools, products, and education needed to build resinous flooring systems that stand the test of time.



If you're planning your next garage floor project, remember:



The coating gets all the attention—but the preparation determines the success.
